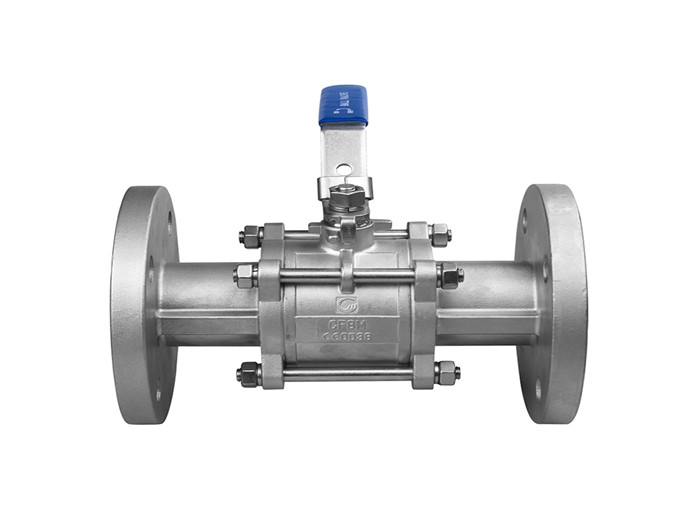

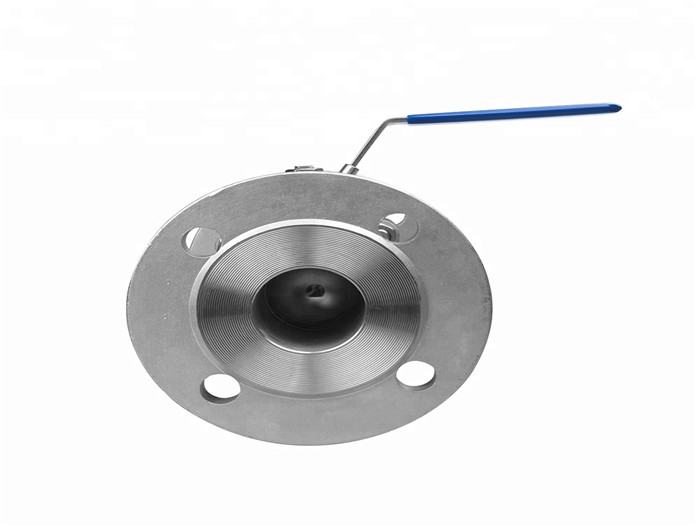

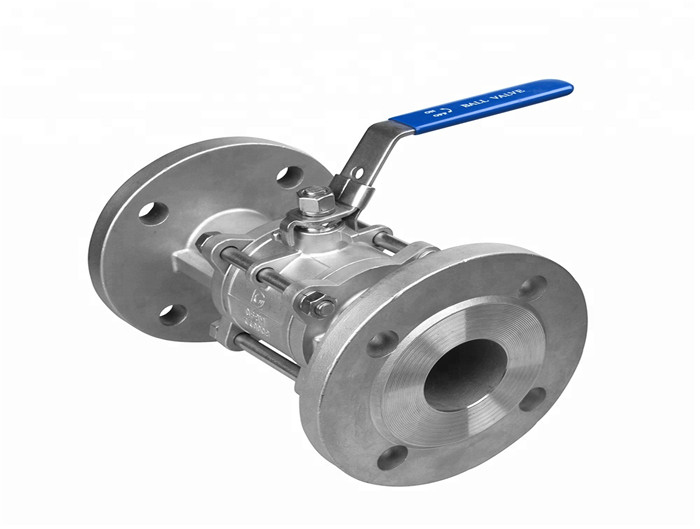

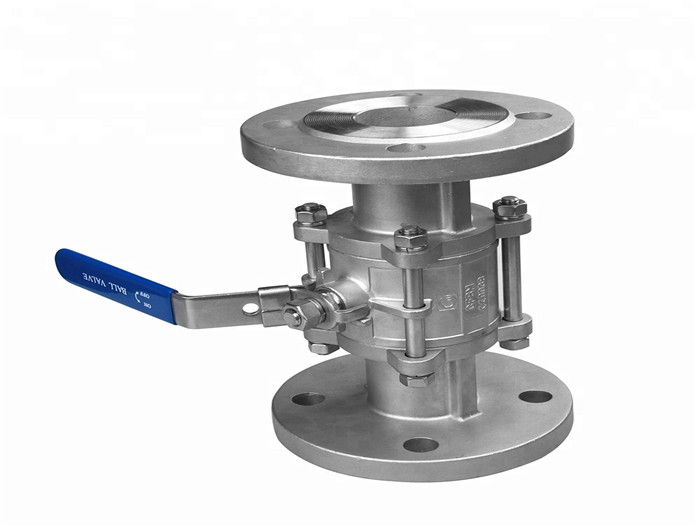

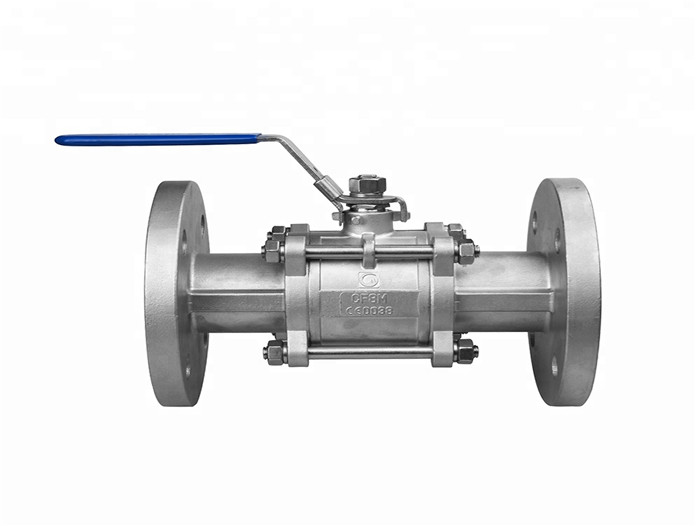

3PC Flanged Ball Valve
Pressure: 150LB, 300LB
Port: Reduced Port
Blow-out Proof Stem
ISO 5211 Mounting Pad
Size: 1/2"-4" (DN15-DN100)
Body: CF8M, CF8, ASTM A216 WCB
Seat: RTFE / PTFE
End: Flanged ANSI B16.5
Face to Face: ANSI B16.10
Fire Safe: API 607
Operation: Handle Lever
Option: Lockable Handle
Suitable medium: Water, oil, air and some corrosive liquid
Temperature: -20~232°C
Fire Safe and Antistatic Device available
Design: ANSI B16.34
Check and testing: API 508
If you need to know more details, please send us an email to: sales@gostarcn.com
