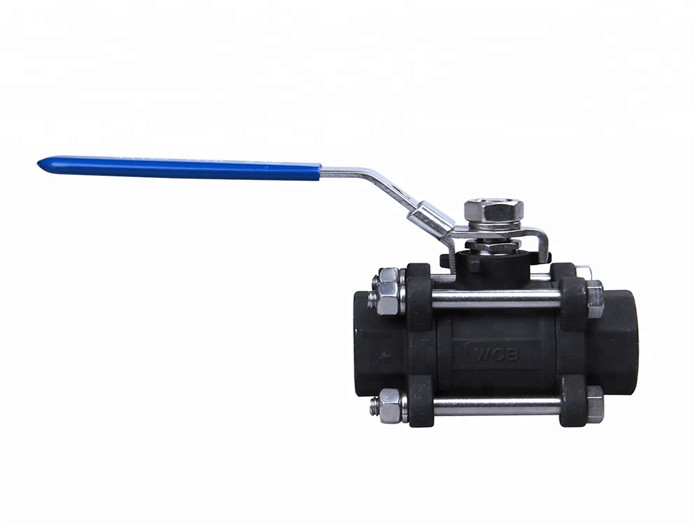

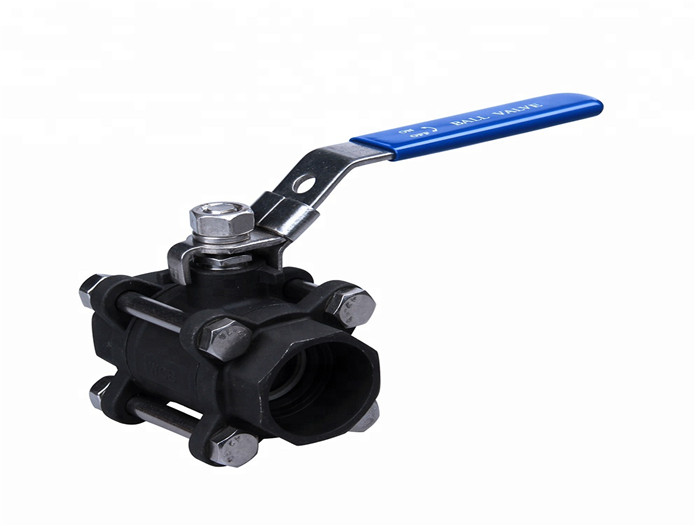

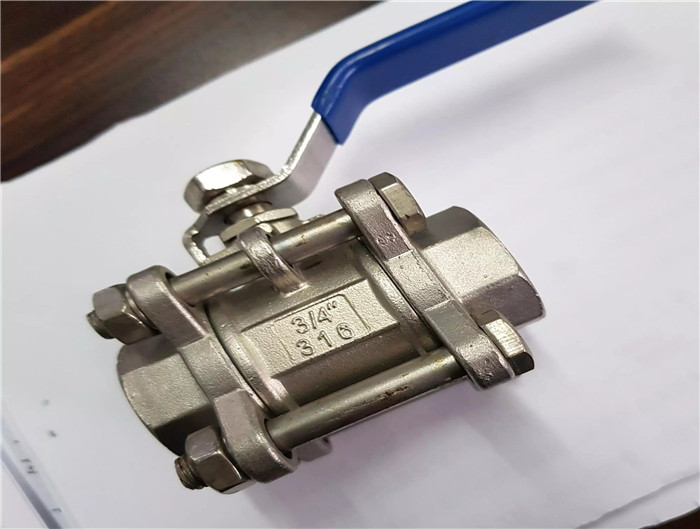

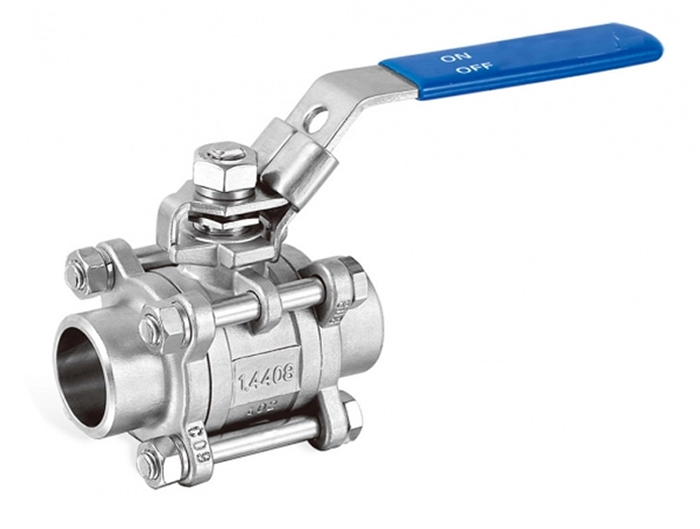

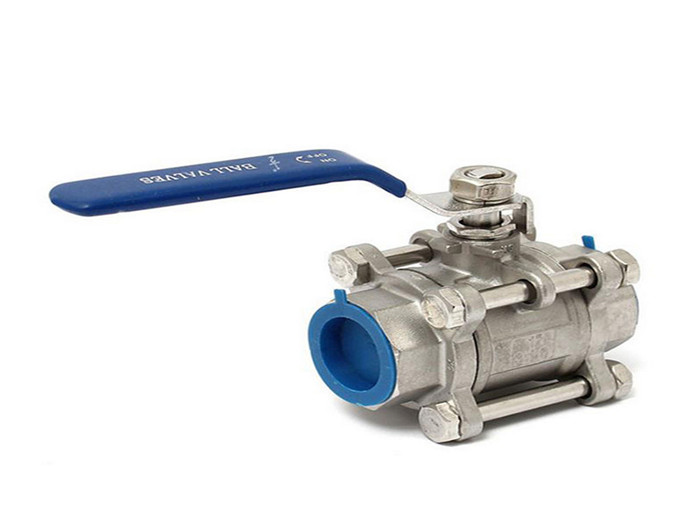

3PC Threaded Ball Valve
Pressure: 1000 WOG/2000 WOG
Port: Full Port
Blow-out Proof Stem
ISO 5211 Mounting Pad
Size: 1/4"-4"
Body: CF8M, CF8, ASTM A216 WCB
Seat: RTFE / PTFE
End: Threaded NPT, BSP, BSPT, DIN, ISO, Butt Weld, Socket Weld
Operation: Handle Lever
Option: Lockable Handle
Suitable medium: Water, oil, air and some corrosive liquid
Temperature: -20~232°C
Design: ANSI B16.34
Check and testing: API 508
If you need to know more details, please send us an email to: sales@gostarcn.com
