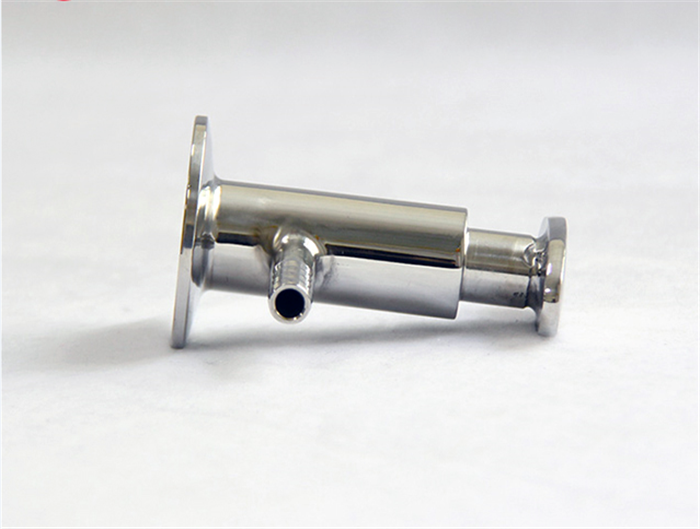

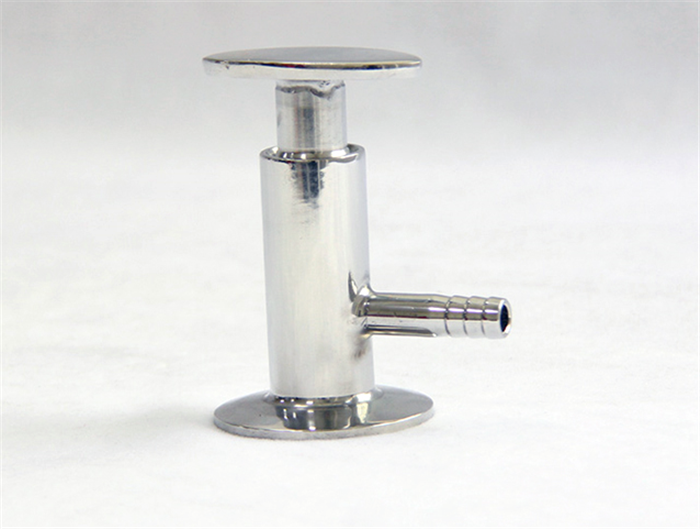

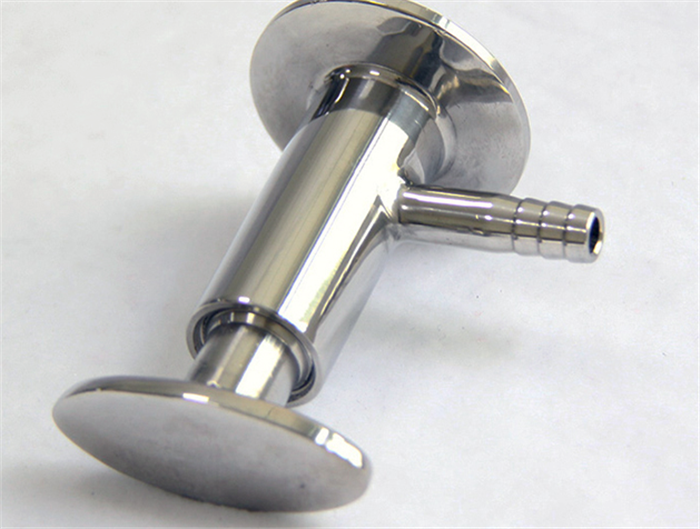

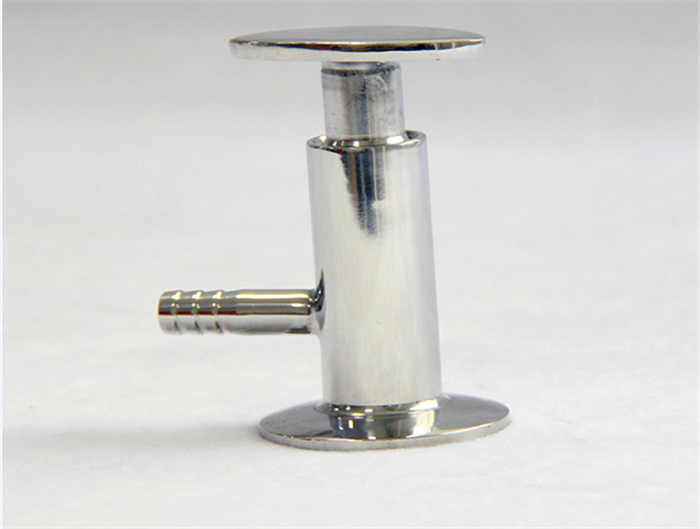

Application: It can be assembled at the bottom of the tank or pipeline to drain away the remains. It is widely used in beer, milk, beverage, fruit juice and pharmaceutical industries, etc.
Work principle: The handwheel rotates the stem clockwise with the seal ring, the valve is opened and sampled, and the handwheel counterclockwise rotates the stem with the ring down when the valve is closed.
Temperature:-20℃~+150℃
Valve body material: 304, 316L
Connection: Clamp, weld, thread
| Material | Contact with the product parts | SS304,SS316L |
| Non contact product parts | SS304 | |
| Pressure | Working pressure | 0~10bar |
| Temperature | Working temperature | -20~+150℃ |
| Sterilization temperature | 150℃≤30min | |
| Surface treatment | Internal surface finish | Ra0.4~0.8μm |
| External surface finish | Ra0.8~1.6μm | |
| Connection | clamp, weld, thread | |
| Standards | 3A, DIN, ISO | |
| Specification | 1/2" | |
If you need to know more details, please send us an email to: sales@gostarcn.com
