Product Name:Galvanized iron wire

Types:Hot dipped/Electro Galvanized

Inquire Now

None

Gavanized iron wire is made of low carbon steel wire rod by drawing molding, acid descaling, high-temperature annealing, galvanizing. Cooling five refined workflow.

Our Products	Galvanized iron wire
Size range	BWG 8 - BWG 22
Zinc coat	30-280g/m2
Tensile strength	350-550N/mm2
Elongation	10%
Surface treatment	PVC coated, electro or hot dipped galvanized

Gauge	SWG		BWG		AWG
Gauge	Inch	mm	Inch	mm	Inch	mm
8	0.16	4.046	0.165	4.191	0.1285	3.264
9	0.144	3.658	0.148	3.759	0.1144	2.906
10	0.128	3.215	0.134	3.404	0.1019	2.588
11	0.116	2.946	0.12	3.048	0.0907	2.305
12	0.104	2.642	0.109	2.769	0.0808	2.053
13	0.092	2.337	0.095	2.413	0.072	1.828
14	0.08	2.032	0.083	2.108	0.0641	1.628
15	0.072	1.829	0.072	1.829	0.0571	1.45
16	0.064	1.626	0.065	1.651	0.0508	1.291
17	0.056	1.422	0.058	1.473	0.0453	1.15
18	0.048	1.219	0.049	1.245	0.0403	1.024
19	0.04	1.016	0.042	1.067	0.0359	0.912
20	0.036	0.914	0.035	0.839	0.032	0.812
21	0.032	0.813	0.032	0.831	0.0285	0.723
22	0.028	0.711	0.028	0.711	0.02535	0.644
23	0.024	0.61	0.025	0.635	0.02256	0.573
24	0.022	0.559	0.022	0.559	0.02011	0.511
25	0.02	0.508	0.02	0.508	0.01791	0.455
26	0.018	0.457	0.018	0.457	0.01594	0.405

Application:

Gavanized iron wire being used for stranded conductors in overhead power circuitry, Cotton packaging, hanger,grape wire.binding wire, express way fencing as fencing wire, binding of flowers as wire ties in the garden and yard, and wire mesh making as weaving wires.

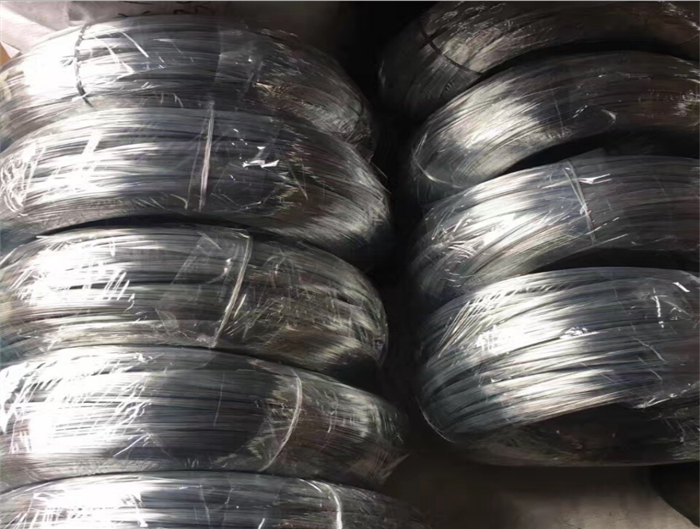

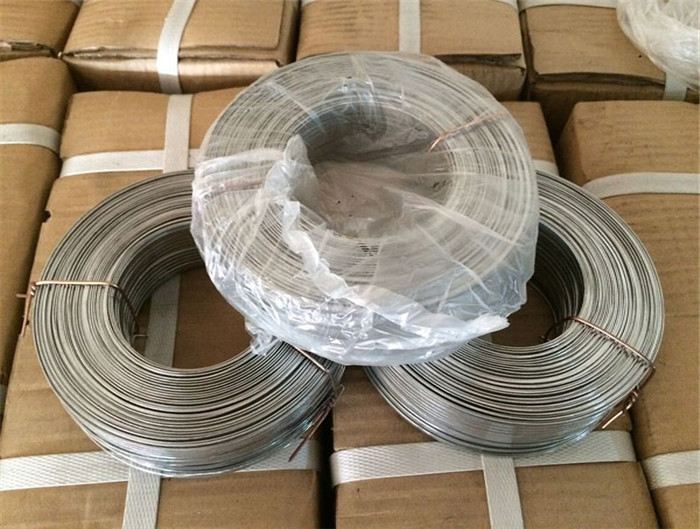

Package:

1. Plastic film inside and woven bag outside.
2. Plastic film inside and hessian bag outside.
3. According to customers' requirement.

If you need to know more details, please send us an email to: sales@gostarcn.com
